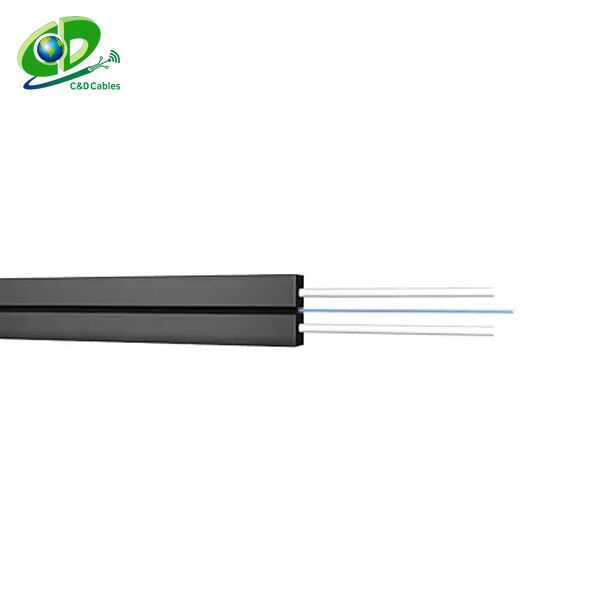

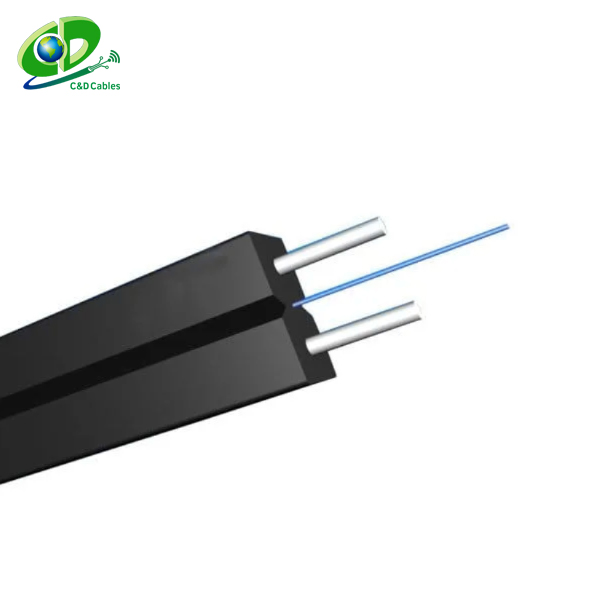

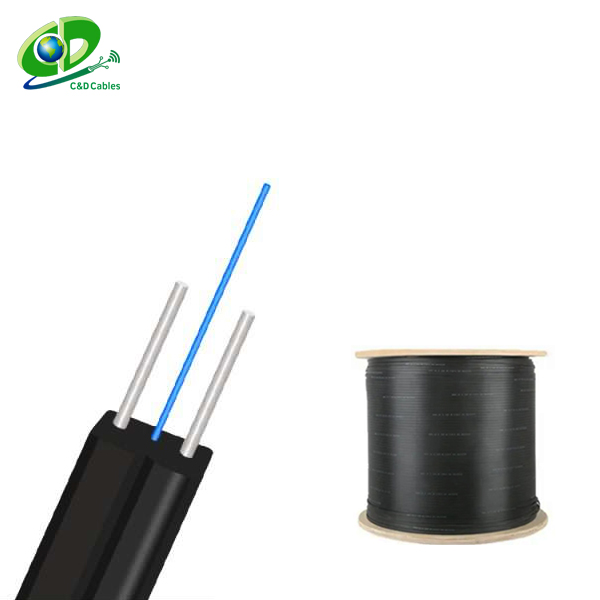

1 Core Indoor Flat Drop Cable

Description

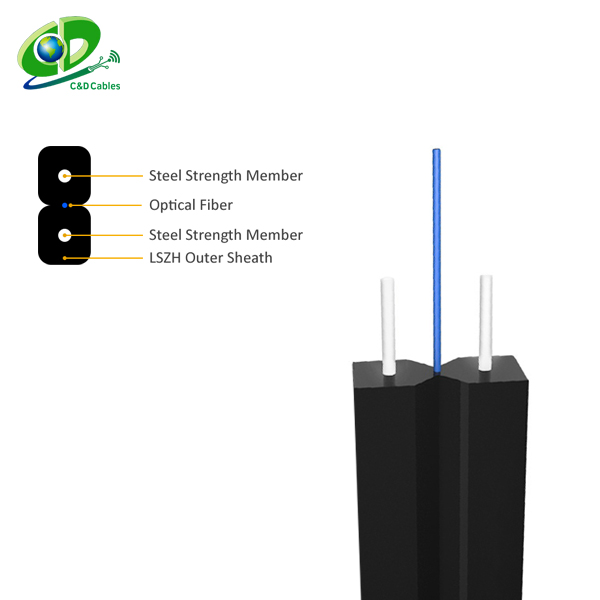

1. Cable Specifications:

• Cable Type: GJXH-1
• Fiber Type: G.657.A2
• Fiber Colors:  GJXH-1: Blue
• Cable Diameter: (2.0 ± 0.05) x (3.0 ± 0.1) mm
• Cable Strength Member: Galvanized Steel (2 strands, 0.45mm)
• Outer Sheath Material: LSZH (Low Smoke Zero Halogen)



2. Mechanical Specifications:

• Minimum Bending Radius:
  • Operation: 30D
  • Using: 15D (where D is the cable diameter)

• Tensile Strength:
  • Long-term: 100N
  • Short-term: 200N

• Crush Strength:
  • Long-term: 1000N/100mm
  • Short-term: 2000N/100mm



3. Optical Characteristics:

• Attenuation:
  • 1310nm ≤0.36dB/km
  • 1550nm ≤0.22dB/km

• Cut-off Wavelength:
  • ≤1260nm



4. Environmental Characteristics:

• • Storage Temperature: -40°C to +70°C
  • Operating Temperature: -30°C to +60°C



5. Features:

• Self-supporting structure, light weight, easy to install.
• Durable and flame retardant LSZH sheath, low smoke zero halogen.
• Steel wire as additional strength member has high tensile strength.
• Two parallel steel strength members ensure good performance of anti-electromagnetic and crush resistance.
• Used in the FTTH projects.
• High performance optical network operation.
• All materials can withstand robust environmental conditions, including sea breeze, rain, and tropical sunlight.
