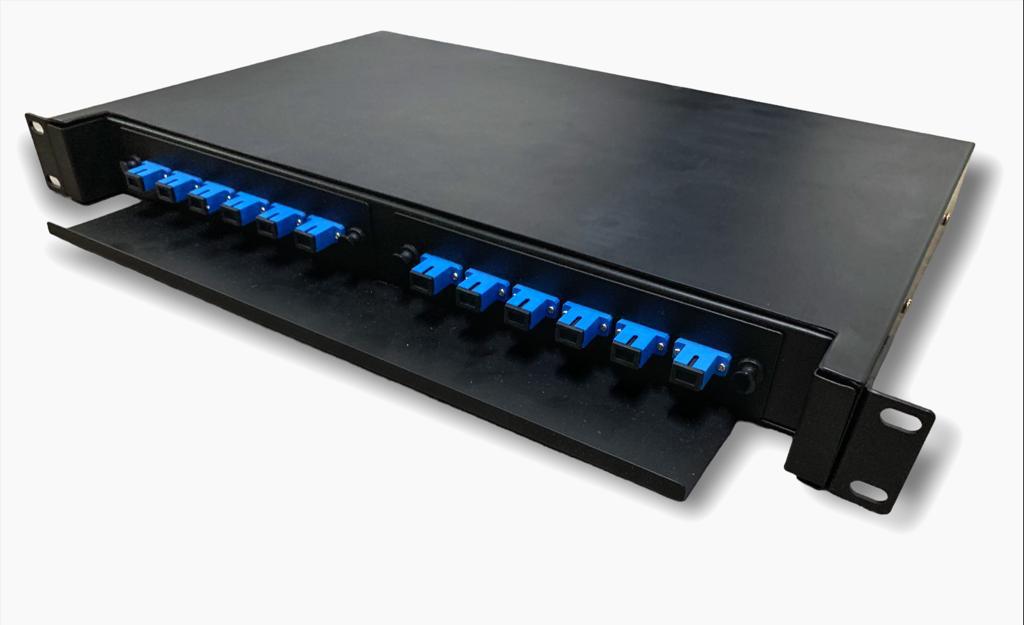

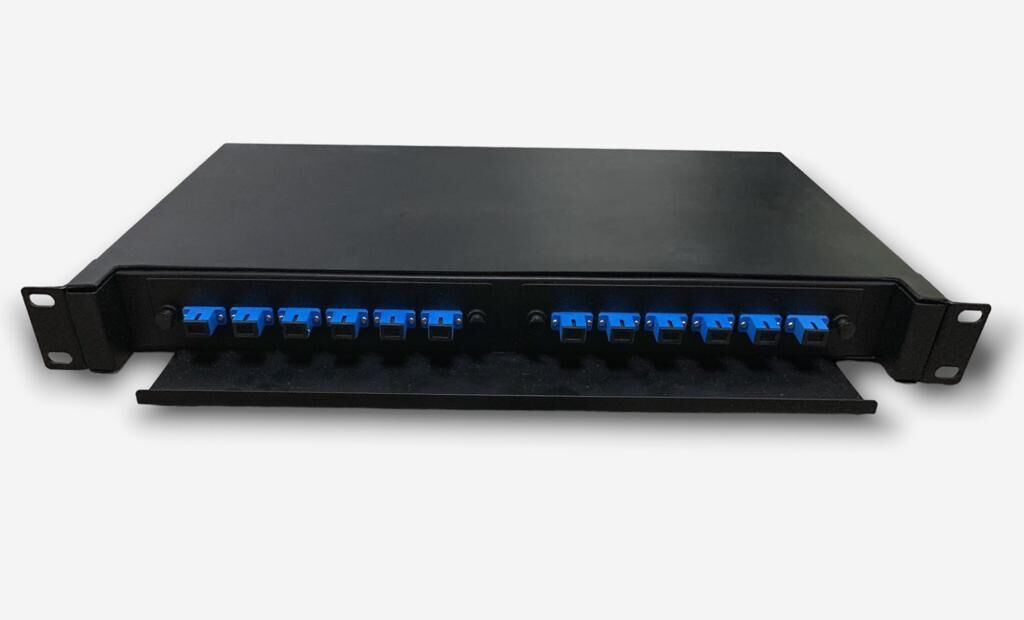

Fiber patch panels, also known as optical distribution frame units, are installed in 1U high and 19-inch standard distribution frames to the ODF, providing flexible cable access. There are two types of 12 port patch panels, SC and FC. This can be installed in the frame with an outer cover and can be pulled forward by two reels attached to it.
- Dimensions – 440(w)x45(h)x290(d)mm
- Colour – White / Black
- Colour Code – RAL 7035 / RAL 9004
- Finish – Powder Coated Smooth Matt
- Location – Indoor
- Application – Rack Mounted
- Unit Height – 1U
- Material Type – Zn Coated
Product Quality and Treatments
- Produced under CNC Laser Cutting Technology.
- Produced under CNC Bending Technology.
- Front has covered by 90 degree L angle face plate to protect fiber cables.
- There are 4 holes in the back of the panel to insert cables & stable the cables by glands.

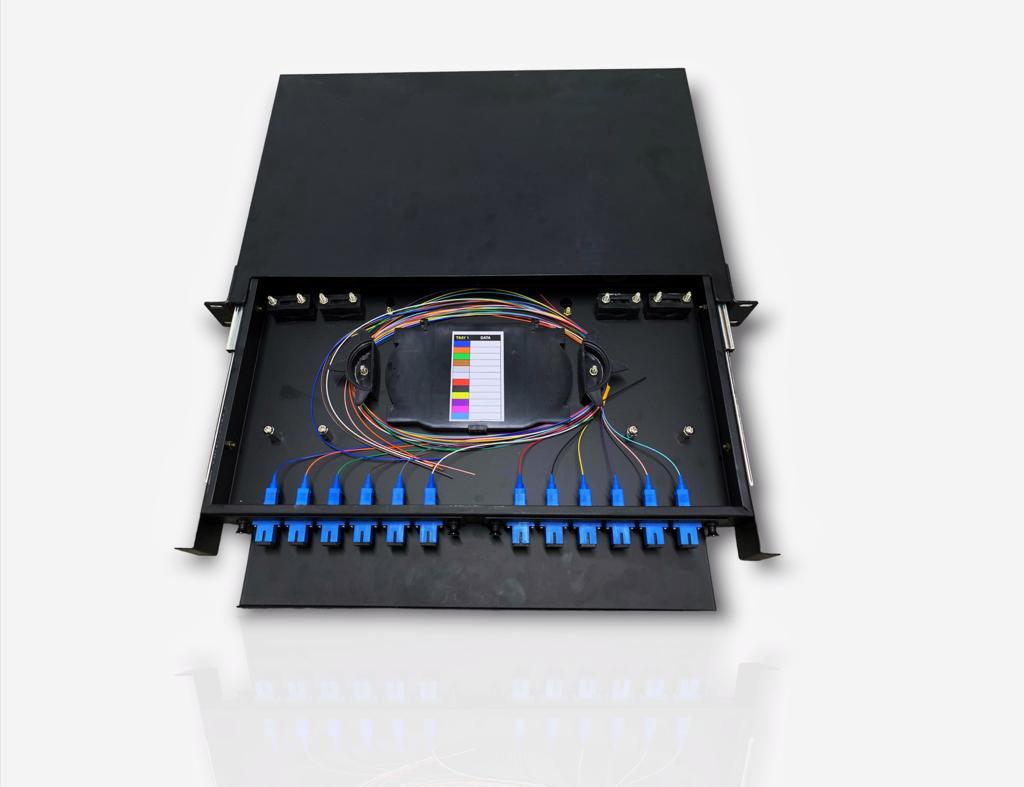

- Included all the relevant accessories package for splicing with the patch panel.
