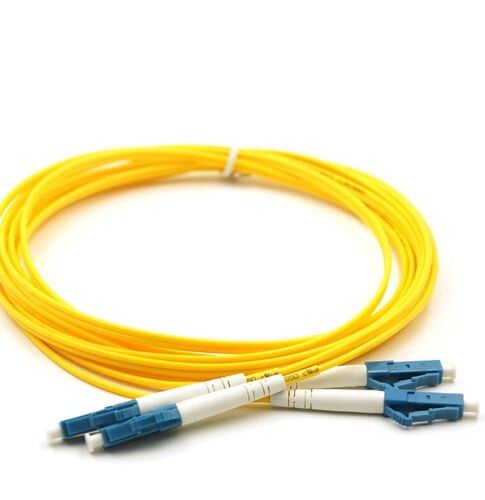

LC – LC

  • Connector Type – LC – LC
  • Polish – UPC to UPC
  • Fiber Type – 9/125 Microns for SM , 50/125 or 62.5/125 Microns For MM
  • Ferrule Type Ceramic
  • Jacket Material – PVC (OFNR riser-rated)

Description

LC Fiber Optic Patch Cord stands for Lu cent Connector. The LC is a small form-factor fiber optic connector. LC connector uses a 1.25 mm ferrule , half the size of the ST.

Specification

LC – LC Patch Cord
Type Single mode
(UPC)
Single mode
(APC)
Multi-mode
(PC)
Insertion loss ≤0.2 dB ≤0.2dB ≤0.2 dB
Return Loss ≥50dB ≥60 dB ≥35dB
Cable Color Yellow Yellow Orange
Repeatability ≤0.1dB
Relative Humidity ≤90% (30 ºC)
Durability ≥1000matings
Operating Temperature -40 ºC to +90 ºC
Tensile Strength(N) ≥90N (φ3),≥70N (φ2)



Features

  • Ideal solution for high-speed data transmission.
  • Superior Qualified Standard PC/UPC/APC Polishing.
  • Low insertion loss.
  • 100% Optic test (insertion Loss & Return Loss)
  • Flexible boot are available
  • Compliant to IEC-61754 and TIA-604 (FOCIS)

Applications

  • Optical fiber communications system
  • Optical fiber access networks
  • Optical fiber test equipment
  • Optical fiber data communication
  • Local Area Networks (LAN)

Will be able to provide end product for any length as per customer requirement.

Additional information

Cable Diameter

2 mm, 3 mm

Cable Length

1 M, 2 M, 3 M, 5 M, 10 M, 15 M, 20 M, 50 M, 75 M, 100 M

Cable Type

Duplex, Simplex

Cable Mode

Multi Mode, Single Mode
