30-Port Fiber Termination Cabinet

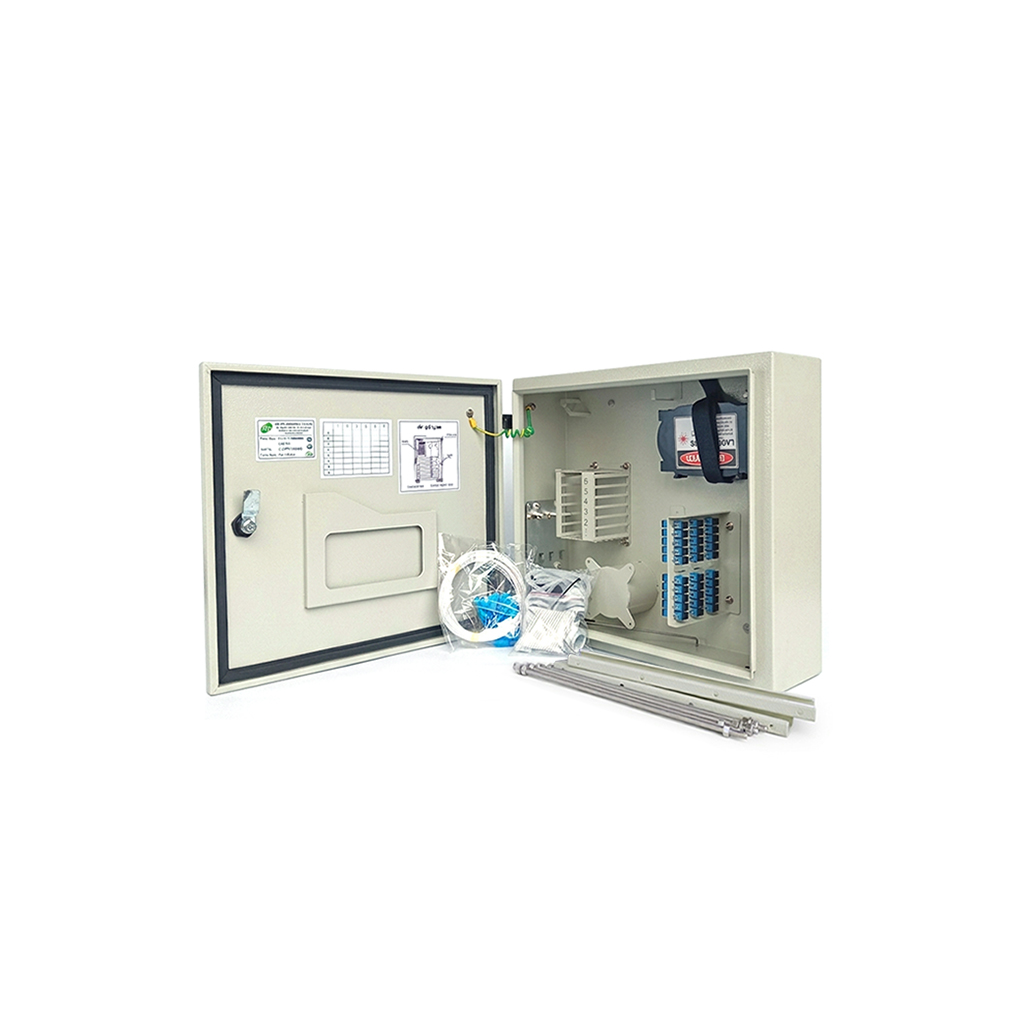

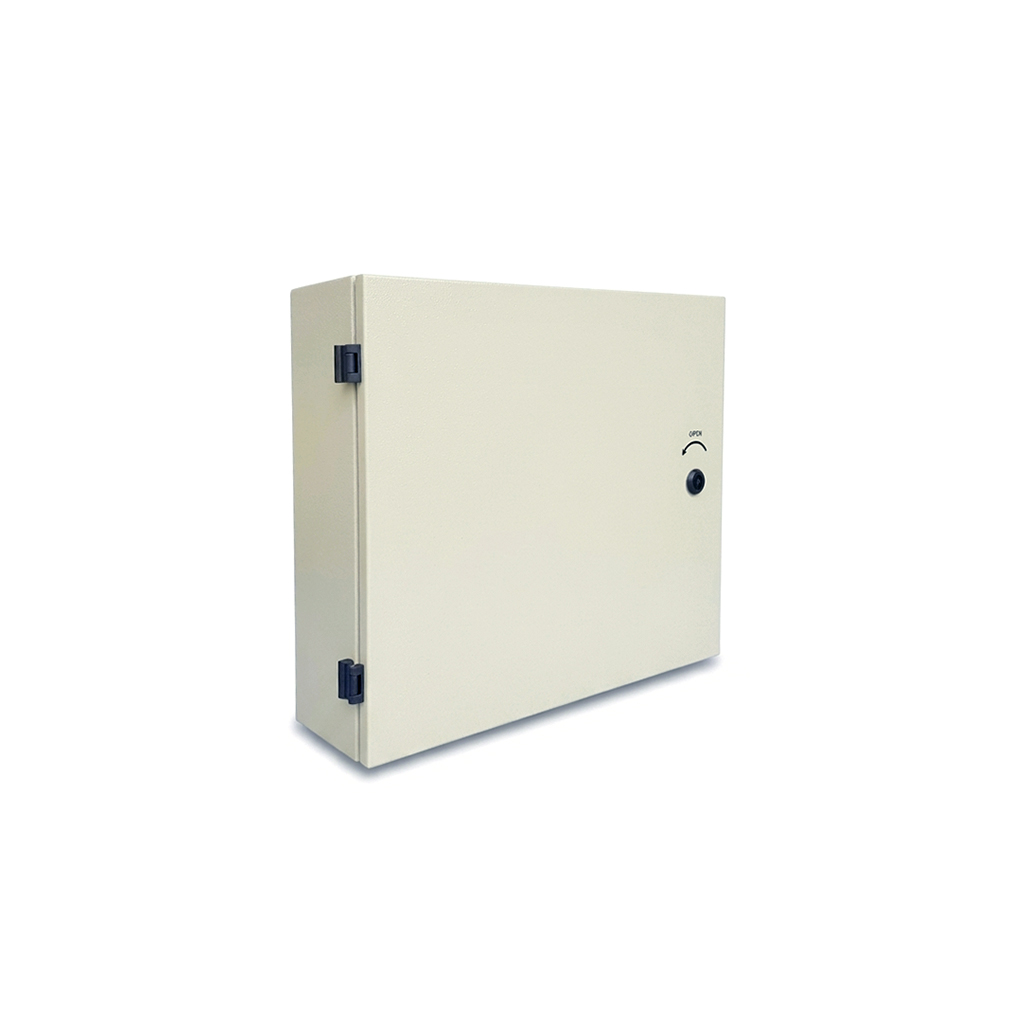

The OP-FTC-030 (M2) Outdoor Pole-Mounted Fiber Optic Termination Cabinet is designed for outdoor fiber optic cable management applications with a 30-port fiber interface. Its design has the capability to change the adapter plate for different adapter types without any modification to the base structure. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection enclosure. Its weather-resistant construction protects optical components while ensuring reliable signal distribution, flexible network expansion, and simplified maintenance operations.
Original price was: LKR 45,000.00.LKR 40,500.00Current price is: LKR 40,500.00.
Description
Outdoor Pole-Mounted Fiber Termination Cabinet (OP-FTC) is used for fiber termination and distribution in optical fiber transmission and communication networks. It can be used for primary and secondary splicing with an advanced fiber cable protection mechanism, as a termination point for the feeder cable to connect with secondary distribution cable in FTTX network systems. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection enclosure. Its design has the capability to change the adapter plate without any modification to the base structure, and can install SC-Simplex, FC-Simplex, ST-Simplex, E2000-Simplex, or LC-Duplex adapters. Constructed with weather-resistant materials and sealed protection, the cabinet safeguards optical components from environmental conditions while ensuring reliable signal transmission, flexible network expansion, and efficient maintenance for modern fiber optic infrastructure deployments.
Features:
- Standard size, light weight, and compliant structure.
- Splice tray is changeable.
- Suitable for ribbon and single fiber.
- Various panel plates to fit different adapter interfaces.
- It ensures that the fiber optic cable bend radius is not less than 40mm.
- Easy for management and operation (No need to remove the complete panel cover for maintenance).
- ISO Standard, IP66 ROHS Compliance
- Operating Temperature : -40°C +80°C
- Humidity : <95%(+40°C)
- Insulated Resistance : > 2x10MΩ/500V(DC)
- Material Structure : Zn-Coated steel sheet with Primary coating and Outdoor PP Powder-coating.
- Regular Colors : RAL7032 – Pebble Grey, RAL7035 – Light Grey
Accessories:

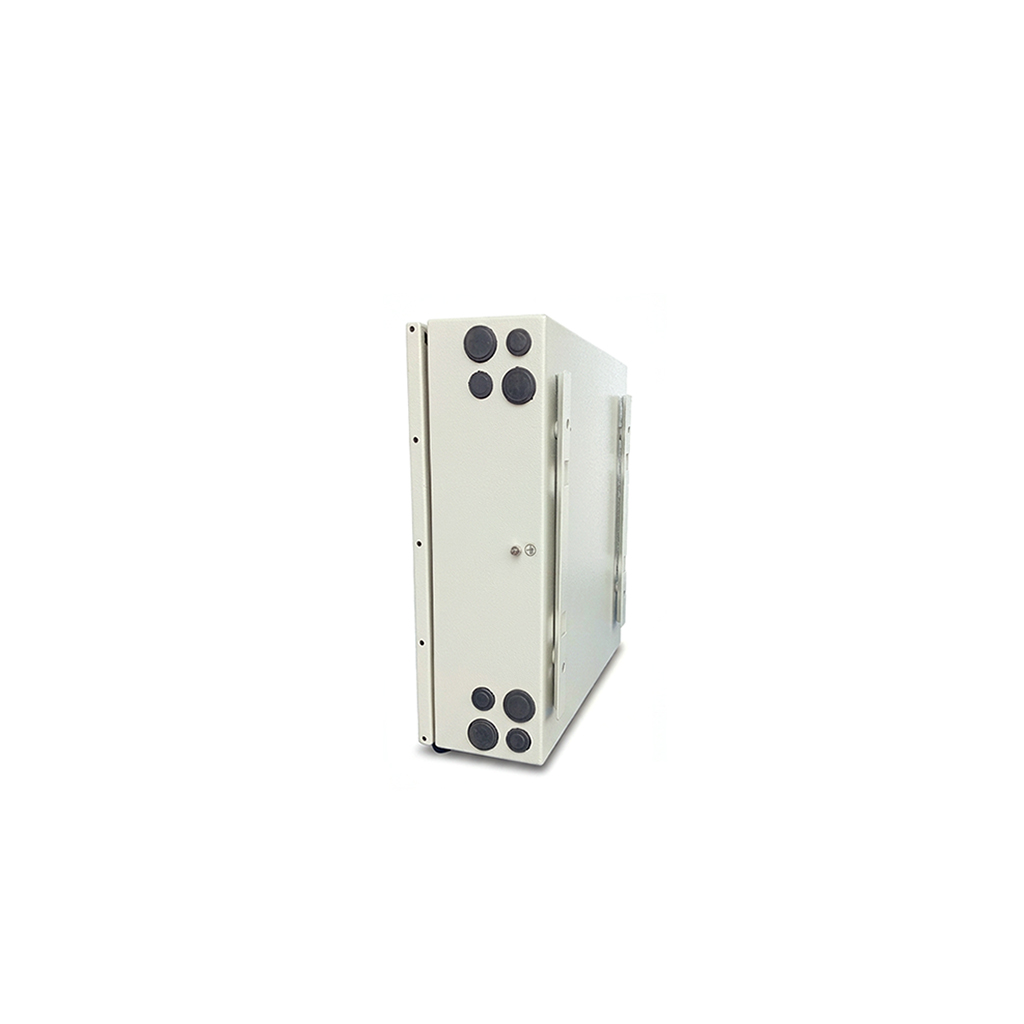

- Cable gland
- Heat shrinkable sleeves 60mm (single fiber)
- Cable Tie

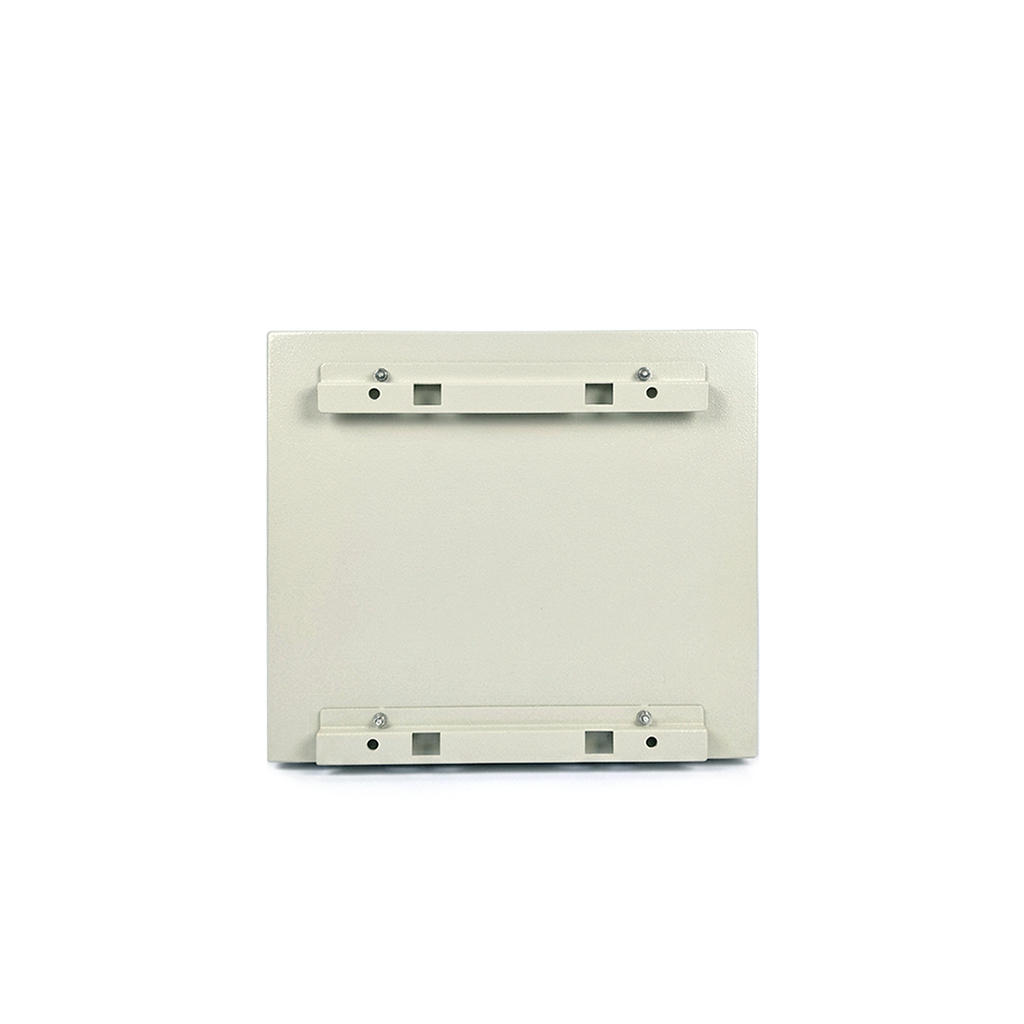

- Pole/wall mounting rings or bolts
- Spiral
- Labels
- Internal cable gland
Applications:
- Telecommunications subscriber loop
- Fiber to the Home (FTTH)
- LAN/WAN
- CATV
- Interconnect CEA, OLT, and SDH Transmission Apparatus
- Terminate Primary Network of the FTTB
- OTN (Optical Transmission Network) distribution
Additional information
| Weight | 8.75 kg |
|---|---|
| Dimensions | 150 × 450 × 400 mm |
