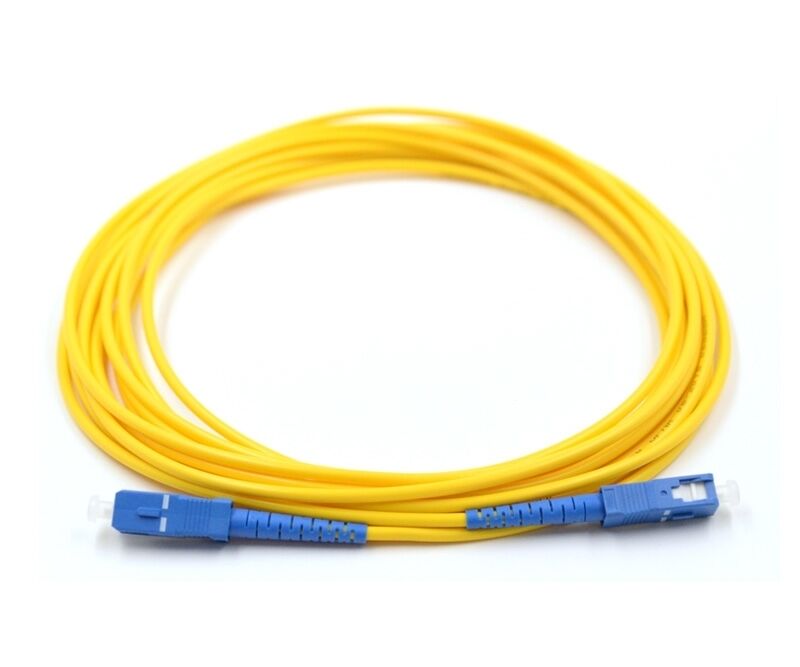

SC – SC
- Connector Type – SC – SC
- Polish – UPC to UPC and UPC to APC
- Fiber Type – 9/125 Microns for SM / 50/125 or 62.5/125 Microns For MM
- Ferrule Type – Ceramic
- Jacket Material – PVC (OFNR riser-rated)
Description
SC Fiber Optic Patch Cord stands for Subscriber Connector a general purpose push/pull style connector. SC has an advantage in duplex ability to support send/receive channels.
Specification
| SC – SC Patch Cord | |||
| Type | Single mode (UPC) | Single mode (APC) | Multi-mode (PC) |
| Insertion loss | ≤0.2 dB | ≤0.2dB | ≤0.2 dB |
| Return Loss | ≥50dB | ≥60 dB | ≥35dB |
| Cable Color | Yellow | Yellow | Orange |
| Repeatability | ≤0.1dB | ||
| Relative Humidity | ≤90% (30 ºC) | ||
| Durability | ≥1000matings | ||
| Operating Temperature | -40 ºC to +90 ºC | ||
| Tensile Strength(N) | ≥90N (φ3),≥70N (φ2) | ||
Features
- Ideal solution for high-speed data transmission.
- Superior Qualified Standard PC/UPC/APC Polishing.
- Low insertion loss.
- 100% Optic test (insertion Loss & Return Loss)
- Flexible boot are available
- Compliant to IEC-61754 and TIA-604 (FOCIS)
Applications
- Optical fiber communications system
- Optical fiber access networks
- Optical fiber test equipment
- Optical fiber data communication
- Local Area Networks (LAN)
Will be able to provide end product for any length as per customer requirement.
Additional information
| Ferrule Type | SC/UPC – SC/APC, SC/UPC – SC/UPC |
|---|---|
| Cable Diameter | 2 mm, 3 mm |
| Cable Length | 1 M, 2 M, 3 M, 5 M, 10 M, 15 M, 20 M, 50 M, 75 M, 100 M |
| Cable Type | Duplex, Simplex |
| Cable Mode | Multi Mode, Single Mode |
